Api Documentation

1. Overview

The Shift Carrier API is a comprehensive integration suite that enables seamless shipping and logistics management across multiple courier partners. Using this API suite, you can:

Fetch cost estimates from multiple courier partners
Book forward shipments with your preferred carrier
Create forward orders with detailed product and address information
Track shipments in real-time
Cancel shipments when needed
Manage pickup and delivery addresses
Simulate order flows for testing

Key Features

Support for both new address creation and existing address reference using UIDs
Detailed product information including HSN codes, dimensions, and values
Multiple payment modes (Prepaid, Cash on Delivery)
Comprehensive shipment details with weight and dimensions
Real-time tracking with detailed event timeline
Multiple courier partner options with ratings

2. Authentication

To access the API, you must include an authorization header with your request using HTTP Basic Authentication.

🔐 Basic Authentication Required

All API requests require the following authorization header:

Authorization: Basic <your_api_key>

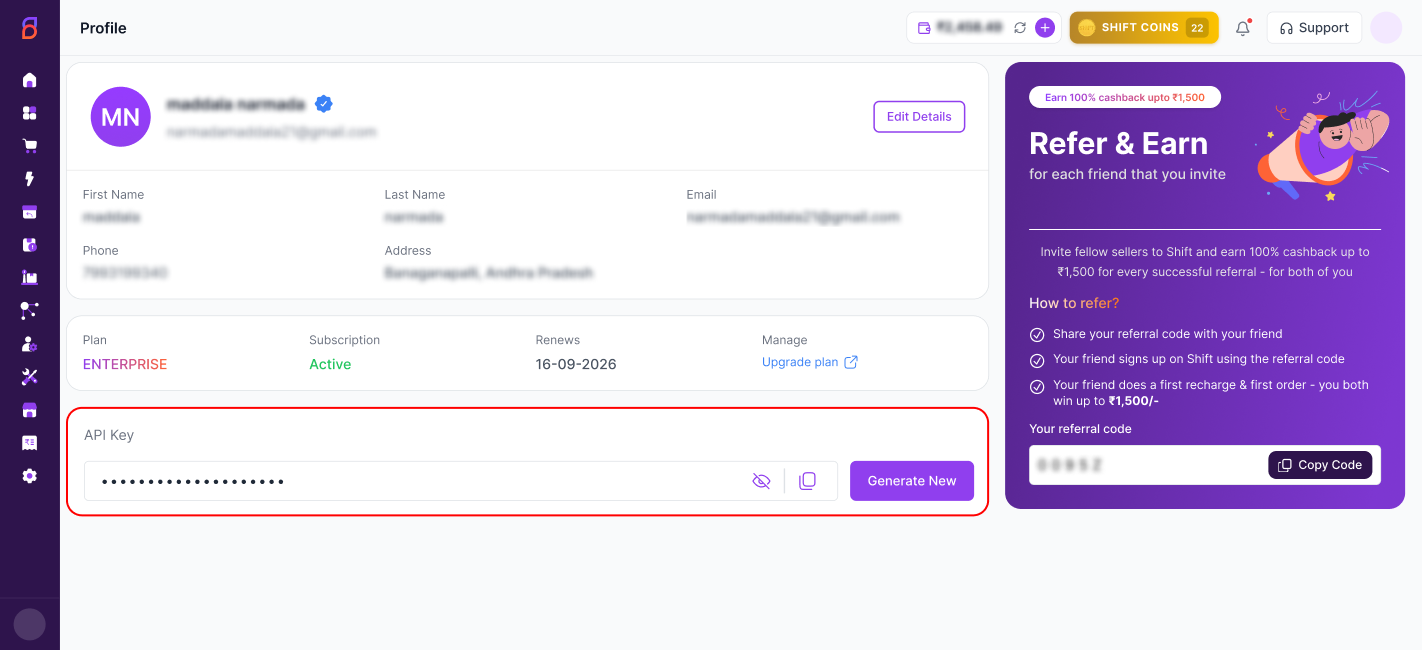

Replace <your_api_key> with your actual API key generated using your login credentials.

Credentials Required

Username: Your registered username (e.g., [email protected])
Password: Your secure password

Methods to Generate Basic Auth Header

Method 1: Using Online Tool (Blitter.se)

Use this online tool to generate your Basic Authentication header from your username and password:

👉 https://www.blitter.se/utils/basic-authentication-header-generator/

Method 2: Using Postman

You can also use Postman to authenicate APIs:

Open Postman and create a new request
Go to the Authorization tab
Select Auth Type as Basic Auth
Enter your Username (e.g., [email protected])
Enter your Password
The authorization header will be automatically generated when you send the request

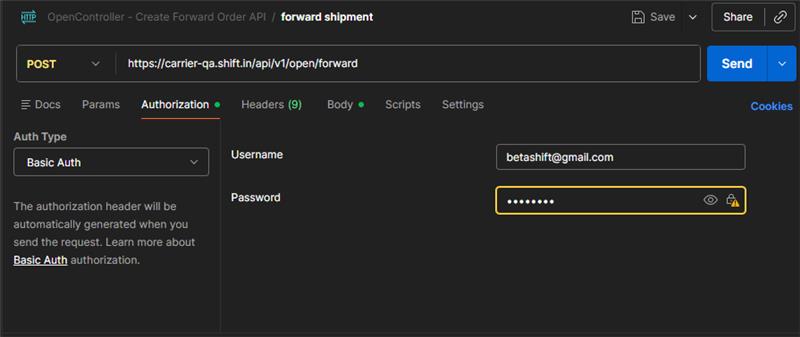

📝 Postman Screenshot Reference:

3. Mandatory Account Setup Steps

Before you can start using the Shift Carrier Tracking API, the following setup steps must be completed in your account:

⚠️ Prerequisites for API Access

Ensure all the following steps are completed before making API calls:

Step	Requirement	Description
1	Growth Plan or Above	Your account must be on the Growth plan or above to access the API. API access is not available on lower tier plans.
2	KYC Completion	Complete the KYC (Know Your Customer) verification process in your account setup. This is mandatory for all API operations.
3	Wallet Balance	Add sufficient amount to your wallet. Ensure adequate balance is maintained for booking shipments and covering shipping charges.
4	Courier Selection	Select and activate your preferred courier partners. In Setup and Manage, select Courier and choose your selected couriers.
5	Courier Priority	Configure and activate courier priority settings. This determines the order of preference when multiple carriers are available for a shipment.

📝 Note: API calls will fail if any of the above prerequisites are not met. Please contact support if you need assistance with account setup.

4. API Endpoints

🧪 QA Environment

https://carrier-qa.shift.in

🚀 Production Environment

https://carrier.shift.in

Available Endpoints

Method	Endpoint	Description
POST	`/api/v1/open/cost-estimates`	Fetch shipping cost estimates
POST	`/api/v1/open/forward`	Book forward shipment
POST	`/api/v1/open/forward/order`	Create forward order
GET	`/api/v1/open/track`	Track an order
POST	`/api/v1/open/forward/shipment/cancel`	Cancel shipment
POST	`/api/v1/open/address`	Create new address
PUT	`/api/v1/open/address`	Update address
GET	`/api/v1/open/address/{addressId}`	Get address details
DELETE	`/api/v1/open/address/{addressId}`	Delete address
POST	`/api/v1/open/order/{orderId}/simulate/status/{endOrderStatus}`	Simulate order flow
POST	`/api/v1/open/return`	Create return shipment
GET	`/api/v1/open/return/track`	Track return shipment
POST	`/api/v1/open/return/shipment/cancel`	Cancel return shipment

5. Fetch Cost Estimates

POST

<HOST>/api/v1/open/cost-estimates

Headers

Header	Value	Description
Authorization	Basic <api_key>	Base64-encoded credentials
Content-Type	application/json	Request body format
siteCode	CARRIER	Site identifier

Request Example

curl --location '<HOST>/api/v1/open/cost-estimates' \
  --header 'siteCode: CARRIER' \
  --header 'Content-Type: application/json' \
  --header 'Authorization: Basic xxxxxxxxxxxxxxxxxx' \
  --data '{
      "returnOrder": false,
      "codOrder": true,
      "destinationPin": 500081,
      "originPin": 500039,
      "weightInGrams": 250,
      "declaredValue": 1000,
      "packageLength": 10,
      "packageBreadth": 10,
      "packageHeight": 10
  }'

Request Parameters

Parameter	Type	Description
returnOrder	Boolean	Whether this is a return order
codOrder	Boolean	Whether this is a COD order
destinationPin	Integer	Destination pincode
originPin	Integer	Origin pincode
weightInGrams	Integer	Package weight in grams
declaredValue	Integer	Declared value of shipment
packageLength	Integer	Package length in cm
packageBreadth	Integer	Package breadth in cm
packageHeight	Integer	Package height in cm

Response Example

✅ Success Response

{
      "data": [
          {
              "carrierCode": "DE",
              "carrierName": "Delhivery(Surface)",
              "totalCharges": 43.75,
              "rtoCharges": 43.75,
              "serviceType": "Surface",
              "deliveryMode": "Surface",
              "estimatedDeliveryDate": "2024-02-24T23:06:43.371053151Z",
              "estimatedPickupDate": "2024-02-24T04:36:43.4357551+05:30",
              "rating": 95,
              "onTimePickupRating": 95.0,
              "onTimeDeliveryRating": 90.0,
              "deliveryAccuracyRating": 95.0,
              "liability": "2000",
              "requestId": "x1/pT7jVcxsEwmPEZZo7kt...",
              "totalChargesBreakup": {
                  "shippingCharges": 37.08,
                  "codCharges": 0.0,
                  "gstCharges": 6.67
              }
          }
      ],
      "errorMessage": null
  }

6. Book Forward Shipment

POST

<HOST>/api/v1/open/forward

⚠️ KEY POINTS TO NOTE:

It is mandatory to fetch cost estimates before booking any forward shipments.
When cost estimates API is requested, in response you get all possible courier options along with key parameters like shipment price, expected delivery date, etc.
Pick a courier partner of your choice, then note down the carrierCode and requestId from the response for that carrier.
When booking a shipment, use the same carrierCode and requestId to book shipment successfully with your desired courier partner.

Request Example

curl --location '<HOST>/api/v1/open/forward' \ --header 'Content-Type: application/json' \ --header 'Authorization: Basic xxxxxxxxxxxxxxxx' \ --data-raw '{ "carrier_code": "DE", "request_id": "x1/pT7jVcxsEwmPEZZo7kt...", "order_number": "TEST00001", "seller_details": { "registered_name": "TEST LLP", "registered_address": "Test Seller Address", "state": "Test State", "gstin": "36AANNN1111E1E1" }, "pickup_location": { "name": "Pickup Addr name here", "phone": "9900990099", "email": "[email protected]", "addressUid": 12345 }, "delivery_location": { "name": "Customer Name", "phone": "9988998899", "email": "[email protected]", "address": { "address_line_1": "Customer Address Line 1", "address_line_2": "Customer Address Line 2", "landmark": "--", "city": "Customer City", "state": "Customer State", "country": "India", "pincode": "200033" } }, "shipment": { "shipment_id": "001", "reshipped": true, "delivery_instructions": "", "weight_grams": 500, "product_details": [ { "quantity": "1", "description": "L – Test Product Name", "hsn_code/sku_code": "ABCD", "category_of_goods": "Category", "commodity_value": "1000.00", "weight_grams": 500, "height_cm": 10, "length_cm": 10, "breadth_cm": 10 } ], "payment_details": { "amount": 1000, "payment_mode": "PPD" }, "dimensions": { "length_cm": 10, "breadth_cm": 10, "height_cm": 10 } "label_preferences": { "use_label_printer_dimension": true, "use_v2_template": true, "show_cod_value": false, "show_ppd_value": true, "show_sender_mobile": true, "show_sender_address": true, "hide_company_logo": false, "hide_product_name": false, "hide_product_sku": false, "hide_products": false, "hide_receiver_mobile": false, "show_support_contact": true, "hide_powered_by": false, "hide_gst_number": false, "use_state_jurisdiction_footer": true, "custom_text": "", "merge_labels": false, "label_size": "4inx6in", "labels_per_page": 2 } } }'

Payload Parameters Guide

Parameter	Description
carrier_code, request_id	Obtained from cost estimates API response
order_number	Needs to be unique for each shipment
seller_details	Provide your GST details here. Use empty if non-GST client
pickup_location	Provide pickup address and contact details. Use either address or addressUid
delivery_location	Provide drop off (customer) address and contact details. Use either address or addressUid
shipment_id	Optional - unique identifier for the shipment. Not mandatory in shipment payload.
payment_mode	Valid values: `PPD` (Prepaid) or `COD` (Cash on Delivery)
reshipped	Optional - send as true if order is being reshipped after cancellation
label_preferences	Optional – Configure and customize the shipping label generated for the shipment. Supported label sizes: 4 × 6 A4 3 × 5 A5

Response Example

✅ Success Response

{
      "data": {
          "carrierCode": "DE",
          "trackingNumber": "25338210179723",
          "shippingLabelUrl": "https://carrier-v2-dev-new.s3.ap-south1.amazonaws.com/.../ShippingLabel-115924.pdf",
          "invoiceUrl": "https://carrier-v2-dev-new.s3.ap-south1.amazonaws.com/.../Invoice-115924-1708663858.pdf",
          "manifestUrl": null,
          "success": true,
          "responseMessage": null
      },
      "errorMessage": null
  }

NOTE: The trackingNumber is the AWB number for the booked forward shipment. This can be used to track the shipment status.

7. Create Forward Order

POST

<HOST>/api/v1/open/forward/order

The Create Forward Order API allows you to create new forward orders with comprehensive sender, receiver, product, and package details. This API supports various order types including prepaid (PPD) and Cash on Delivery (COD) orders.

Main Request Fields

Field	Type	Required	Description
orderNumber	String	Required	Unique identifier for the order
pickupLocation	Object	Required	Sender/pickup address details
dropLocation	Object	Required	Receiver/delivery address details
shipments	Object	Required	Package and product details

Location Object Structure

Each location (pickup/drop) can be specified in two ways:

Option 1: Using Address UID (Existing Address)

Field	Type	Description
addressUid	Integer	Reference to existing address ID

Option 2: Full Address Details (New Address)

Field	Type	Required	Description
name	String	Required	Contact person name
phone	String	Required	Contact phone number
email	String	Required	Contact email address
address	Object	Required	Address details object

Address Object Structure

Field	Type	Required	Description
addressLine1	String	Required	Primary address line
addressLine2	String	Optional	Secondary address line
city	String	Required	City name
state	String	Required	State name
pincode	Integer	Required	Postal code (6-digit Indian pincode)

Shipments Object Structure

Field	Type	Required	Description
weightInGrams	Integer	Required	Total package weight in grams
product_details	Array	Optional	Array of product detail objects
payment_details	Object	Optional	Payment information
dimensions	Object	Optional	Package dimensions (length_cm, breadth_cm, height_cm)

Response Example

✅ Success Response (HTTP 200)

{
      "data": 12345,
      "errorMessage": null
  }

The data field contains the unique order ID generated for the created forward order.

❌ Error Response (HTTP 400)

{
      "data": null,
      "errorMessage": "Invalid order data provided"
  }

8. Track an Order

GET

<HOST>/api/v1/open/track?orderNumber={orderNumber}

Query Parameters

Parameter	Required	Description
orderNumber	Required	The unique identifier of the order to track

Request Example

curl --location '<HOST>/api/v1/open/track?orderNumber=105022' \
  --header 'Authorization: Basic YmV0YXNoaWZ0OlRlc3QxMjM0'

Response Structure

{
      "data": {
          "orderNumber": "105022",
          "expectedDeliveryDate": "2024-02-27",
          "shipmentPickupDate": "2024-02-24",
          "orderStatus": "Ready To Ship",
          "orderStatusCode": "RTS",
          "trackingNumber": "14355980684220",
          "orderedDate": "2024-01-22T15:39:00.000+00:00",
          "buyerName": "Mamta Sehgal",
          "buyerPhoneNum": "7780531087",
          "buyerAddressLine1": "Near shree ram mandir, Punjabi mohalla",
          "buyerAddressLine2": "ward no. 3,nadbai,Bharatpur RajasthanE",
          "buyerAddressLine3": "Bharatpur, Rajasthan",
          "buyerAddressLine4": "India - 321602",
          "senderAddressCity": "Hyderabad",
          "senderAddressState": "Telangana",
          "trackingDetails": [
              {
                  "scanStatus": "Data Received",
                  "scanLocation": "RTO/BRY, BANGALORE, KARNATAKA",
                  "scanDateTime": "2024-01-31T10:36:00.000+00:00"
              },
              {
                  "scanStatus": "Pickup Not Done",
                  "scanLocation": "RTO/BRY, BANGALORE, KARNATAKA",
                  "scanDateTime": "2024-02-01T12:59:00.000+00:00"
              },
              {
                  "scanStatus": "Out For Pickup",
                  "scanLocation": "RTO/BRY, BANGALORE, KARNATAKA",
                  "scanDateTime": "2024-02-02T00:42:00.000+00:00"
              }
          ],
          "carrierName": "Xpressbees",
          "deliveredDate": null
      },
      "errorMessage": null
  }

Tracking Details Object

Each item in the trackingDetails array provides information about a specific event in the shipment's journey:

Field	Description
scanStatus	The current status of the shipment
scanLocation	The location where the status was recorded
scanDateTime	The date and time when the status was updated

9. Cancel Shipment

POST

<HOST>/api/v1/open/forward/shipment/cancel

Request Parameters

Parameter	Required	Description
carrier_code	Required	Carrier code for the shipment
tracking_number	Required	AWB number assigned by the courier partner
cancel_reason	Optional	Reason for shipment cancellation

Request Example

curl --location '<HOST>/api/v1/open/forward/shipment/cancel' \
  --header 'Content-Type: application/json' \
  --header 'Authorization: Basic xxxxx' \
  --data '{
      "carrier_code": "DE",
      "tracking_number": "9804710002951",
      "cancel_reason": "Customer rejected"
  }'

Response Example

{
      "data": true,
      "errorMessage": null
  }

10. Return Order APIs

The Return Order APIs allow you to manage reverse logistics — including fetching cost estimates, creating return shipments, tracking them, and cancelling if needed. The flow mirrors the forward shipment flow: estimate → book → track → cancel.

10.1 Return Order Cost Estimate

POST

<HOST>/api/v1/open/cost-estimates

This uses the same cost estimates endpoint as forward shipments. The key difference is setting "returnOrder": true in the request body.

Request Example

curl --location '<HOST>/api/v1/open/cost-estimates' \
--header 'siteCode: CARRIER' \
--header 'Content-Type: application/json' \
--header 'Authorization: Basic xxxxxxxxxxxxxxxxxx' \
--data '{
    "returnOrder": true,
    "codOrder": true,
    "destinationPin": 500081,
    "originPin": 500032,
    "weightInGrams": 250,
    "declaredValue": 1000,
    "packageLength": 10,
    "packageBreadth": 10,
    "packageHeight": 10
}'

Request Parameters

Parameter	Type	Description
returnOrder	Boolean	Must be set to true for return shipments
codOrder	Boolean	Whether this is a COD order
destinationPin	Integer	Destination pincode (seller's pickup location)
originPin	Integer	Origin pincode (customer's location)
weightInGrams	Integer	Package weight in grams
declaredValue	Integer	Declared value of shipment
packageLength	Integer	Package length in cm
packageBreadth	Integer	Package breadth in cm
packageHeight	Integer	Package height in cm

📝 Note: The response structure is identical to the forward cost estimates response. Note down the carrierCode and requestId from the response — you will need these to create the return shipment.

10.2 Create Return Shipment

POST

<HOST>/api/v1/open/return

⚠️ KEY POINTS TO NOTE:

It is mandatory to fetch return cost estimates before creating a return shipment.
Use the carrierCode and requestId from the cost estimates response.
For return shipments, pickup_location is the customer's address and delivery_location is the seller's address.
Both locations can be specified using an addressUid (existing address) or full address details.

Request Example

curl --location '<HOST>/api/v1/open/return' \
--header 'Content-Type: application/json' \
--header 'Authorization: Basic xxxxxxxxxxxxxxxxxx' \
--data '{
    "carrier_code": "XB",
    "request_id": "x1/pT7jVcxsEwmPEZZo7kt...",
    "auto_carrier_selection_enabled": false,
    "pickup_location": {
        "addressUid": 311910
    },
    "delivery_location": {
        "addressUid": 306160
    },
    "shipment": {
        "delivery_instructions": "Handle with care",
        "shipment_value": 1000.00,
        "return_reason_code": "CHNGDMND",
        "qc_needed": false,
        "weight_grams": 250,
        "product_details": [
            {
                "quantity": 1,
                "description": "Blue T-Shirt - Size L",
                "hsn_code/sku_code": "SKU-12345",
                "category_of_goods": "Apparel",
                "commodity_value": 1500.00,
                "weight_grams": 500,
                "height_cm": 10,
                "length_cm": 30,
                "breadth_cm": 25
            }
        ],
        "dimensions": {
            "length_cm": 10,
            "breadth_cm": 10,
            "height_cm": 10
        }
    }
}'

Payload Parameters Guide

Parameter	Required	Description
carrier_code	Required	Obtained from the return cost estimates API response
request_id	Required	Obtained from the return cost estimates API response
auto_carrier_selection_enabled	Optional	Set to `true` to let the system auto-select the best carrier. If `false`, `carrier_code` and `request_id` are used
pickup_location	Required	Customer's address (origin of return). Use either `addressUid` or full address details
delivery_location	Required	Seller's address (destination of return). Use either `addressUid` or full address details
shipment_value	Optional	Declared value of the return shipment
return_reason_code	Optional	Reason code for the return (e.g., `CHNGDMND` for Change of Mind)
qc_needed	Optional	Set to `true` if quality check is required upon return delivery
delivery_instructions	Optional	Special handling instructions for the courier
product_details	Optional	Array of product objects being returned (same structure as forward shipment)
dimensions	Optional	Package dimensions in cm (length_cm, breadth_cm, height_cm)

Response Example

✅ Success Response

{
    "data": {
        "carrierCode": "XB",
        "trackingNumber": "24344960035209",
        "shippingLabelUrl": "https://carrier-v2.s3.ap-south-1.amazonaws.com/.../ShippingLabel-XXXXX.pdf",
        "invoiceUrl": null,
        "manifestUrl": null,
        "success": true,
        "responseMessage": null
    },
    "errorMessage": null
}

NOTE: The trackingNumber returned is the AWB number for the return shipment. Save this — it is required for tracking and cancellation.

10.3 Track Return Shipment

GET

<HOST>/api/v1/open/return/track?returnAWBNumber={returnAWBNumber}

Query Parameters

Parameter	Required	Description
returnAWBNumber	Required	The AWB/tracking number returned when the return shipment was created

Request Example

curl --location '<HOST>/api/v1/open/return/track?returnAWBNumber=243449600352189' \
--header 'Authorization: Basic xxxxxxxxxxxxxxxxxx'

📝 Note: The tracking response structure is identical to the forward shipment tracking response, including the trackingDetails array with scanStatus, scanLocation, and scanDateTime for each event.

10.4 Cancel Return Shipment

POST

<HOST>/api/v1/open/return/shipment/cancel

Request Parameters

Parameter	Required	Description
carrier_code	Required	Carrier code used when the return shipment was created
tracking_number	Required	AWB number of the return shipment to cancel

Request Example

curl --location '<HOST>/api/v1/open/return/shipment/cancel' \
--header 'Content-Type: application/json' \
--header 'Authorization: Basic xxxxxxxxxxxxxxxxxx' \
--data '{
    "carrier_code": "XB",
    "tracking_number": "24344960035209"
}'

Response Example

✅ Success Response

{
    "data": true,
    "errorMessage": null
}

10. Address Management

Create a New Address

POST

<HOST>/api/v1/open/address

Request Parameters

Parameter	Required	Description
addressName	Required	Name for the address
addressLine1	Required	Max 60 chars – do not send garbage chars
addressLine2	Required	Max 60 chars – do not send garbage chars
zipCode	Required	6-digit Indian pincode only
addressType	Optional	SENDER (pickup) or RECEIVER (customer)
contactName	Required	Max 60 chars
email	Required	Proper email format is mandatory
phoneNumber	Required	Used for SMS and WhatsApp communication
city	Optional	Auto-populated based on zipcode
state	Optional	Auto-populated based on zipcode

NOTE: If city-state data is not available with Google Maps API for the given pincode, then the API call will fail.

Request Example

curl --location --request POST '<HOST>/api/v1/open/address' \ --header 'Authorization: Basic XXX==' \ --header 'sitecode: CARRIER' \ --header 'Content-Type: application/json' \ --data-raw '{ "addressName": "John Doe'\''s Residence", "addressLine1": "123 Main St", "addressLine2": "Apt 4B", "zipCode": 500098, "addressType": "SENDER", "contactName": "John Doe", "email": "[email protected]", "phoneNumber": "+918885000000" }'

Response Example

{
      "data": 99880,
      "errorMessage": null
  }

The data field contains the unique address ID which can be used to create orders.

Update an Existing Address

PUT

<HOST>/api/v1/open/address

Request Example

curl --location --request PUT '<HOST>/api/v1/open/address' \ --header 'Authorization: Basic XXX' \ --header 'sitecode: CARRIER' \ --header 'Content-Type: application/json' \ --data-raw '{ "addressId": 59673, "addressName": "John Donut'\''s Residence", "addressLine1": "123 Main St", "addressLine2": "Apt 4B", "city": "Hyderabad", "state": "TG", "zipCode": 500098, "addressType": "SENDER", "contactName": "John Donut", "email": "[email protected]", "phoneNumber": "+918885000000" }'

Response Example

{
      "data": true,
      "errorMessage": null
  }

Get Address Details

GET

<HOST>/api/v1/open/address/{addressId}

Request Example

curl --location --request GET '<HOST>/api/v1/open/address/59673' \
  --header 'Authorization: Basic XXX' \
  --header 'sitecode: CARRIER'

Response Example

{ "data": { "addressId": 59673, "addressName": "John Donut's Residence", "addressLine1": "123 Main St", "addressLine2": "Apt 4B", "city": "Hyderabad", "state": "Telangana", "zipCode": 500098, "addressType": "SENDER", "contactId": 20915, "contactName": "John Donut", "email": "[email protected]", "phoneNumber": "+91888000000" }, "errorMessage": null }

Delete an Address

DELETE

<HOST>/api/v1/open/address/{addressId}

Request Example

curl --location --request DELETE '<HOST>/api/v1/open/address/59673' \
  --header 'Authorization: Basic XXX' \
  --header 'sitecode: CARRIER'

Response Example

{
      "data": true,
      "errorMessage": null
  }

11. Order Simulation API

POST

<HOST>/api/v1/open/order/{orderId}/simulate/status/{endOrderStatus}

Request Parameters

Parameter	Description
orderId	Unique Order Id for testing order flow
endOrderStatus	Valid values: `DLV` (Delivered flow) or `RTO_DLV` (RTO flow)

Request Example

curl --location --request POST 'http://localhost:8080/api/v1/open/order/250962/simulate/status/DLV' \
  --header 'Authorization: Basic XXX' \
  --header 'sitecode: CARRIER' \
  --header 'Content-Type: application/json'

The response will be of content type text/event-stream. The response is streamed to the caller with status updates for each stage of the simulation.

Sample Streamed Response

{
      "simulationStatusMap": {
          "NEW": {
              "success": true,
              "statusDescription": "Order fetched successfully. Order Current status is NEW. Simulation starting...",
              "inProgress": false,
              "pending": false
          },
          "RTS": {
              "success": true,
              "statusDescription": "All eligible actions (Communication, Financial, Marketplace updates etc) simulated successfully.",
              "inProgress": false,
              "pending": false
          },
          "INT": {
              "success": true,
              "statusDescription": "All eligible actions simulated successfully.",
              "inProgress": false,
              "pending": false
          },
          "OFD": {
              "success": true,
              "statusDescription": "All eligible actions simulated successfully.",
              "inProgress": false,
              "pending": false
          },
          "DLV": {
              "success": true,
              "statusDescription": "All eligible actions simulated successfully.",
              "inProgress": false,
              "pending": false
          }
      }
  }

12. Status Codes Reference

The orderStatusCode can include the following values:

Status Code	Status Description	Comments
NEW	New	When a new order is created, it is in New state
RTS	Ready To Ship	When a shipment is booked for an order. Implies waiting for pickup
INT	In Transit	Order moves to this state post successful pickup by courier partner
OFD	Out for Delivery	Order moves to this state when shipment is out for delivery
DLV	Delivered	Order moves to this state when shipment is delivered to buyer
RTO_INT	Returning to Origin	When shipment is rejected by buyer and is returning back to seller
RTO_DLV	Returned to Origin	When RTO is complete and shipment is delivered back to seller
CNX	Cancelled	When seller cancels the order through portal
UND	Undelivered	Could be an interim state during delivery attempts
LST	Lost/Damaged	When there is an issue with the shipment from courier partner
HLD	Hold	When seller archives the order from portal

13. Use Cases & Examples

Use Case 1: Basic Forward Order

Creates a simple forward order with minimal required fields for quick order processing.

{ "orderNumber": "ORD-001", "pickupLocation": { "name": "Sender Name", "address": { "addressLine1": "123 Sender St", "addressLine2": "Suite 100", "city": "SenderCity", "state": "SenderState", "pincode": 500001 }, "phone": "9000000001", "email": "[email protected]" }, "dropLocation": { "name": "Receiver Name", "address": { "addressLine1": "456 Receiver Ave", "addressLine2": "Apt 202", "city": "ReceiverCity", "state": "ReceiverState", "pincode": 500002 }, "phone": "9000000002", "email": "[email protected]" }, "shipments": { "weightInGrams": 1500 } }

Use Case 2: Prepaid Order with Product Details

Creates a comprehensive prepaid order with detailed product information, ideal for e-commerce shipments.

{ "orderNumber": "ORD-002-PPD", "pickupLocation": { "name": "Electronics Store", "address": { "addressLine1": "789 Tech Park", "addressLine2": "Building A, Floor 3", "city": "Hyderabad", "state": "Telangana", "pincode": 500081 }, "phone": "9876543210", "email": "[email protected]" }, "dropLocation": { "name": "John Doe", "address": { "addressLine1": "101 Customer Street", "addressLine2": "Apartment 505", "city": "Bangalore", "state": "Karnataka", "pincode": 560001 }, "phone": "9123456789", "email": "[email protected]" }, "shipments": { "weightInGrams": 2500, "product_details": [ { "quantity": 2, "description": "Wireless Headphones - Black", "hsn_code/sku_code": "WHB-001", "category_of_goods": "Electronics", "commodity_value": 2999.99, "weight_grams": 500, "height_cm": 20, "length_cm": 15, "breadth_cm": 10 } ], "payment_details": { "payment_mode": "PPD", "amount": 6499.97 }, "dimensions": { "length_cm": 25, "breadth_cm": 20, "height_cm": 15 } } }

Use Case 3: Cash on Delivery (COD) Order

Creates a COD order where payment is collected upon delivery, common for fashion and retail items.

{ "orderNumber": "ORD-003-COD", "pickupLocation": { "name": "Fashion Boutique", "address": { "addressLine1": "Mall Road", "addressLine2": "Shop No. 45", "city": "Mumbai", "state": "Maharashtra", "pincode": 400001 }, "phone": "9988776655", "email": "[email protected]" }, "dropLocation": { "name": "Sarah Johnson", "address": { "addressLine1": "Green Valley Apartments", "addressLine2": "Flat 302, Tower B", "city": "Pune", "state": "Maharashtra", "pincode": 411001 }, "phone": "9876543210", "email": "[email protected]" }, "shipments": { "weightInGrams": 800, "product_details": [ { "quantity": 1, "description": "Designer Dress - Red", "hsn_code/sku_code": "DD-RED-L", "category_of_goods": "Apparel", "commodity_value": 3500.00, "weight_grams": 400, "height_cm": 5, "length_cm": 40, "breadth_cm": 30 } ], "payment_details": { "payment_mode": "COD", "amount": 4500.00, "codCollectibleAmount": 4500.00 }, "dimensions": { "length_cm": 45, "breadth_cm": 35, "height_cm": 10 } } }

Use Case 4: Using Existing Address UIDs

Efficiently creates orders using pre-registered address UIDs, reducing data redundancy and processing time.

{
      "orderNumber": "ORD-004-EXISTING",
      "pickupLocation": {
          "addressUid": 59673
      },
      "dropLocation": {
          "addressUid": 59674
      },
      "shipments": {
          "weightInGrams": 1200,
          "product_details": [
              {
                  "quantity": 1,
                  "description": "Book - Programming Guide",
                  "hsn_code/sku_code": "BK-PG-001",
                  "category_of_goods": "Books",
                  "commodity_value": 599.00,
                  "weight_grams": 1200,
                  "height_cm": 3,
                  "length_cm": 24,
                  "breadth_cm": 18
              }
          ],
          "payment_details": {
              "payment_mode": "PPD",
              "amount": 599.00
          },
          "dimensions": {
              "length_cm": 24,
              "breadth_cm": 18,
              "height_cm": 3
          }
      }
  }

Use Case 5: Mixed Address Order

Combines existing pickup address UID with new drop location details for flexible order processing.

{ "orderNumber": "ORD-005-MIXED", "pickupLocation": { "addressUid": 59673 }, "dropLocation": { "name": "New Customer", "address": { "addressLine1": "789 New Street", "addressLine2": "Building C", "city": "Delhi", "state": "Delhi", "pincode": 110001 }, "phone": "9876543210", "email": "[email protected]" }, "shipments": { "weightInGrams": 750, "product_details": [ { "quantity": 3, "description": "T-Shirt - Cotton", "hsn_code/sku_code": "TS-CTN-M", "category_of_goods": "Apparel", "commodity_value": 399.00, "weight_grams": 250, "height_cm": 2, "length_cm": 30, "breadth_cm": 25 } ], "payment_details": { "payment_mode": "COD", "amount": 1197.00, "codCollectibleAmount": 1197.00 }, "dimensions": { "length_cm": 30, "breadth_cm": 25, "height_cm": 6 } } }

14. Error Handling

The Shift Carrier Tracking API uses a consistent error structure to provide feedback on failed operations. When an API call fails, the response will include an errorMessage field with a descriptive message of what went wrong, while the data field will be null.

Error Response Structure

{
      "data": null,
      "errorMessage": "string"
  }

Common Error Messages

Order Not Found

When an order number does not correspond to any existing order in the system:

{
      "data": null,
      "errorMessage": "Order not found for given order number 105099;"
  }

Invalid Order Data

When required fields are missing or invalid data is provided:

{
      "data": null,
      "errorMessage": "Invalid order data provided"
  }

Address Validation Failed

When city-state data is not available for the given pincode:

{
      "data": null,
      "errorMessage": "Unable to validate address for given pincode"
  }

Shift Carrier - API Documentation

1. Overview

Key Features

2. Authentication

🔐 Basic Authentication Required

Credentials Required

Methods to Generate Basic Auth Header

Method 1: Using Online Tool (Blitter.se)

Method 2: Using Postman

3. Mandatory Account Setup Steps

⚠️ Prerequisites for API Access

4. API Endpoints

🧪 QA Environment

🚀 Production Environment

Available Endpoints

5. Fetch Cost Estimates

Headers

Request Example

Request Parameters

Response Example

6. Book Forward Shipment

Request Example

Payload Parameters Guide

Response Example

7. Create Forward Order

Main Request Fields

Location Object Structure

Option 1: Using Address UID (Existing Address)

Option 2: Full Address Details (New Address)

Address Object Structure

Shipments Object Structure

Response Example

8. Track an Order

Query Parameters

Request Example

Response Structure

Tracking Details Object

9. Cancel Shipment

Request Parameters

Request Example

Response Example

10. Return Order APIs

10.1 Return Order Cost Estimate

Request Example

Request Parameters

10.2 Create Return Shipment

Request Example

Payload Parameters Guide

Response Example

10.3 Track Return Shipment

Query Parameters

Request Example

10.4 Cancel Return Shipment

Request Parameters

Request Example

Response Example

10. Address Management

Create a New Address

Request Parameters

Request Example

Response Example

Update an Existing Address

Request Example

Response Example

Get Address Details

Request Example

Response Example

Delete an Address

Request Example

Response Example

11. Order Simulation API

Request Parameters

Request Example

Sample Streamed Response

12. Status Codes Reference

13. Use Cases & Examples

Use Case 1: Basic Forward Order

Use Case 2: Prepaid Order with Product Details

Use Case 3: Cash on Delivery (COD) Order

Use Case 4: Using Existing Address UIDs
